Shoring Scaffold Cuplok

| Print |

Modular scaffolding can be used for shoring in any construction project. With the use of suitable dimension ledgers the verticals are connected to form a grid with the specified loading capacity in accordance with the requirements of each concreting project.

Advantages of Cuplok

Strong 64kN per leg
Savings in erection times - fast to assemble
Simple to erect
Systemised bracing reduces labour costs
Galvanised - for ease of handling and low maintenance
Full design support - with C.A.D.
Fully Systemised - can eliminate tube and loose fittings
Components up to 20% lighter than traditional counterparts
Versatile for support and access
Confidence from in-depth technical support

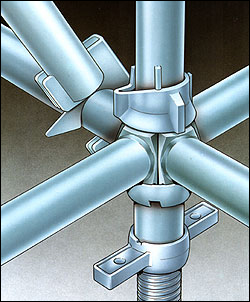

1. Locate the blade end of ledgers and transoms into lower cup

2. Slide the upper cup down the standard and rotate

3. Tighten with a hammer blow

4. A positive and rigrid connection of up to four units is achieved in one single action

"L"
Length (mm) centre to centre of Verticals	Weight (kg)
600 900 1000 1200 1300 1600 1800 2500	2.65 3.73 4.10 4.81 5.17 6.24 6.96 9.50
